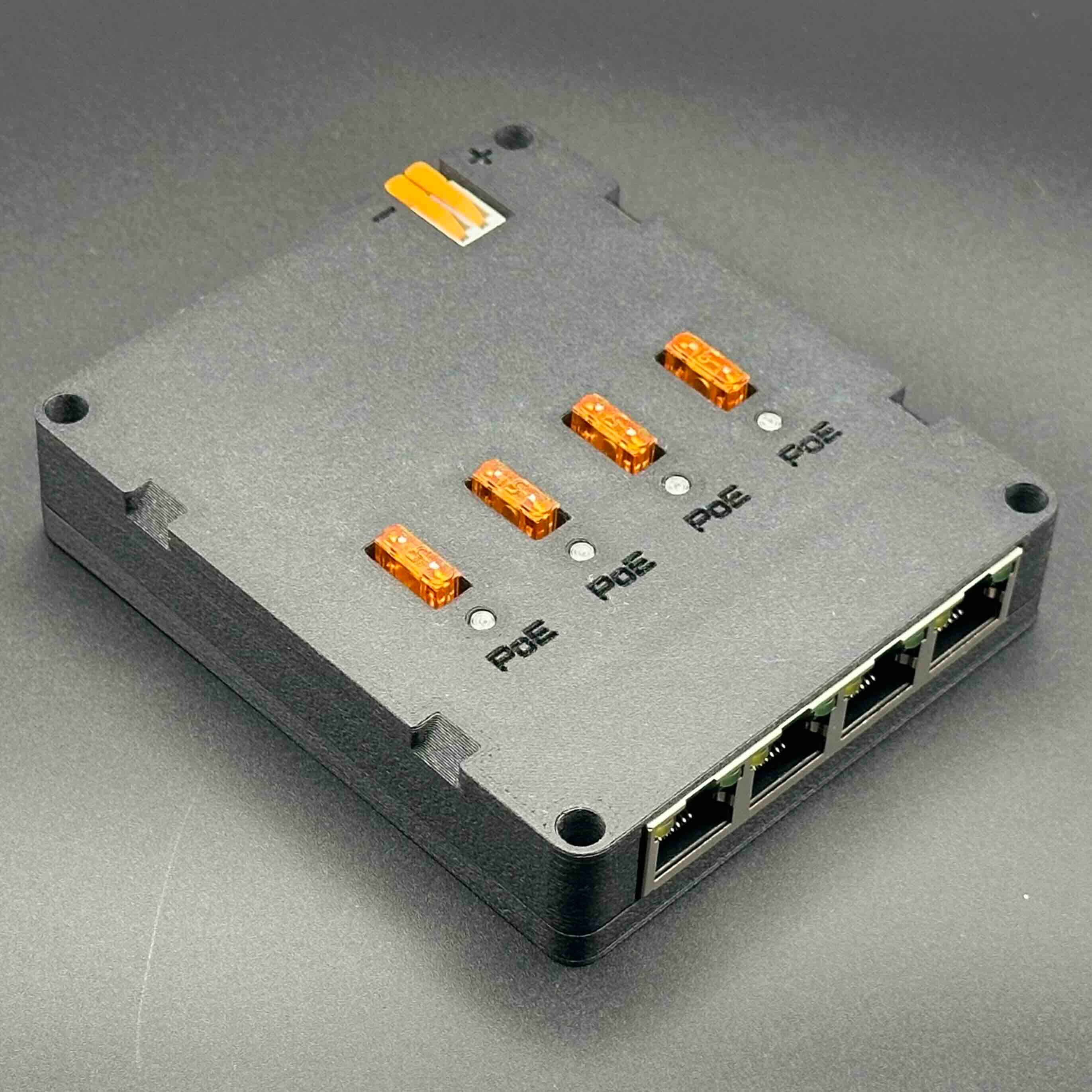

LumaSwitch

Five port passive PoE ethernet switch built specifically for the needs of FRC robots.

Hardware Specs

Same reliable buck-boost power stage of Luma P1
- 3.3V - 22.5V Input range
- Reverse polarity protection
- WAGO 2601 power input
Five port 10/100 unmanaged switch
4X ports with optional unregulated PoE output
- Each port individually protected with a fuse
- LED indicator when PoE is active
- Remove fuse to disable PoE
Versatile mounting
- #10 through holes on 0.5" pitch
- Zip-tie notches
Lightweight, less than 0.25lb with fuses installed
